Cavitation Effect on Die Cast Tooling and its Relationship to:
Breakout  &  Lamination, Laminar Fill, & Blistering

MetaLL* ifeÒ a a> Benefits

Cavitation videos - strong destructive forces to die casting dies.


3min clip - Windows Media file Requires Media Player
University of Minnesota Lab Studies
on cavitation - courtesy Dr. Roger Arndt
This video shows the generation and
effect of vortex and sheet cavitation.

3min clip - Windows Media file Requires Media Player
The Scablands - Geologic cavitation
Water and aluminum has similar flow characteristics
The destroyed rock is your die material.

Read below for how to correct it.

Click on photo or movie reel to view video

Click on photo or movie reel to view this video

graphics may take a few moments to load - Please wait


The premature failure phenomenon of breakout occurs in other industries besides die casting.  Often it is experienced in pumps and other products such as boat propellers as well as other hydraulically operated machinery.  The boat propeller will literally be eaten away over time without being subjected to any type of outside abrasive or destructive environment other than water.  Why is this?

Prop cavitation effect

Cavitation damage

In hydraulic pumps, it occurs, not on the high pressure side but rather on the low pressure side and was misunderstood for years.  Unfortunately this effect also occurs too frequently during die casting operations but is not recognized for what it is.   Breakout (which usually occurs before major heat checking) should be attributed  more to cavitation effect than thermal fatigue.  This may be a new science for die casting, but it has already been documented in the fluid dynamic studies of rotary hydraulic pumps for impact hammers used to break up rock and concrete.  NADCA does recognize cavitation as a mode of failure but has not understood the devasting result of not addressing it.

Pump cavitation damage Close up shows metal breaking out

There are a number of contributing factors that lead to cavitation including: trapped gas bubbles, local change in flow, and varying pressures all of which create voids or trapped gas bubbles.   The die casting process has all 3 of these present along with exacerbated high temperature extremes.  Any one or a combination of these can lead to cavitation effect.

One bubble collapsing on surface Boundary effect of collapse   High speed collapse - millions in one die cast cycle
Note: pressure spike starting in phase #8


void high pressure bubble collapsing on surface
click on photo or movie reel to view

When Badger Metal examines castings from dies that come to us for initial treatment in a USED condition, most all of these show varying degrees of premature surface failure (breakout, pitting, erosion) in the gated area of the casting.  We also see this condition where flow fill dramatically changes direction .

Molten metal, being at extremely high temperatures, behaves somewhat like boiling water.  As a liquid is close to turning into a gas state, many bubbles are present.  Even after prudent degassing, molten metal still contains these bubbles with new volumes introduced every time the die is filled with molten metal.  These bubbles prevent the liquid (mroten metal) from being in a sought after ideal "incompressible" state.

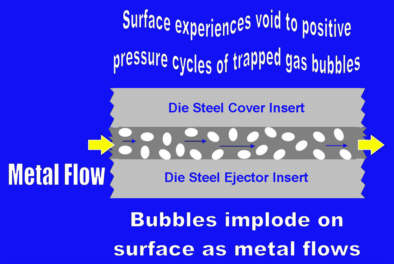

As this gaseous liquid enters the die, the bubbles collapse (implode) on the die's surface.  As a bubble implodes, the nature of this implosion creates millions of cycles of "void to positive" impact pressures on the surface of the die even within extremely short durations of thousands of a second (figure 1).  These millions of cycles, even though they are at relatively low pressure, result in higher cycle fatigue locally at the die surface.  Extremely small particles begin to separate from the die's surface during each shot.  The small particle separations are initially not visible to the human eye (figure 2).  Very rapidly, however, and after a relatively few number of shots and billions of bubble implosions, the continued separations exhibit themselves as visible pits in the surface commonly referred to as breakout and still mistakenly blamed on thermal heat checking (figure 3).  How can the implosion of these small pressure bubbles do so much damage?














Figure 1



Figure 2


Figure 3

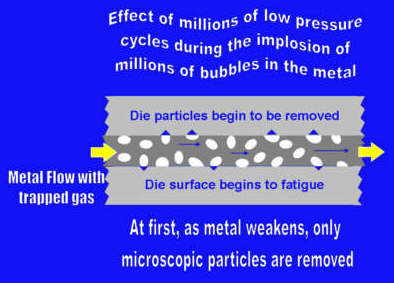

Even though the pressures are very low, they see billions of these cycles in a very short period of time.  These billions of cycles, in a short period of time, start with small microscopic die material particles being removed from the face of the tool which eventually exhibit themselves as missing metal from the tools surface and teats on the casting surface.

If there is an absence of these gases being induced, such as in Case Western's dip tank test, there is also an absence of breakout which further supports confirmation of the cavitation fluid dynamic effect.

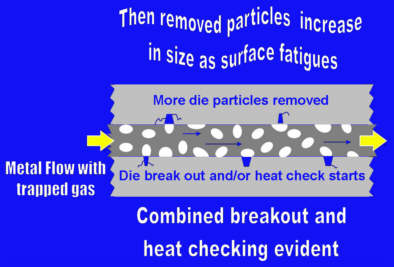

The cavitation effect continues further weakening the die steel surface as more tensile stresses are developed.  The stresses build until the fatigue strength of the steel is exceeded at which point heat checking begins.  Sometimes both breakout and heat checking appear to start at the same time.  This creates a recipe for disaster and accelerated die failure.  See photos below.

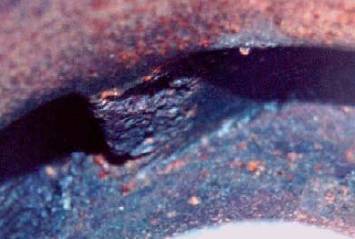

These breakouts are too large to close


Pitting of the die causes raised tits or small bumps on casting surface


Small die pits can sometimes be corrected with MetaLL ifeÒ if addressed at an early stage

back to Sep 07 newsletter
back to top of page


Addressing The Issue - Apply  MetaLL* ifeÒ Before Sampling To Both the Cover & Ejector!

Badger's validation has always been MetaLL ifeÒ's ability to close minor heat checks in USED tooling in an encapsulating layer of compression thereby increasing the fatigue strength of the steel and preventing propagation or initiation of further cracks.  We cannot, however, put back missing metal.  The fix for missing metal is to apply weld to the voids which only further decreases the steel's integrity leading to more problems.

In the early 1990's, realizing that it is always better to prevent rather than to fix a problem, we began to recommend doing MetaLL ifeÒ to NEW tooling but after sampling and on both sides of the die.  Some customers only do the MetaLL ifeÒ to the problem side which is WRONG since metal flows and cavitation occurs on both sides of the die.  Another problem with doing MetaLL ifeÒ after sampling is that many tools go straight into production so they never get the benefit of being done except as a Band-Aid fix.

Research has also shown than only a relatively small number of shots starts to weaken unprotected steel by starting the generation of the unwanted tensile stresses and micro cracking on corners.
Click here to download (1.5Meg) and view the Residual Baseline Study (Powerpoint) conducted by NADCA & Case Western University.

Advancements in EDM and heat treatment allow many tools today, to be built and run without any or sometimes many major engineering corrections and changes.  Because of these advances and what the Residual Stress study showed, Badger now advocates doing tooling when NEW but BEFORE sampling.  If some changes are necessary, we are willing to reprocess the tooling if changes are required and do so at a substantial reduced or on a "No Charge" basis.  If you do MetaLL an ifeÒ to the tool (cover & ejector) in this manner and again at the normal half life of the tool, we will GUARANTEE a 25% increase in tool life* beyond what you customarily would get.

Think of it this way.  When your car is new, do you wait until the vehicle has 75,000 miles and the engine shows problems before you change the oil for the first time?  Of course not.  Equally so, with this new knowledge, die casters must be even more proactive regarding tool preventative maintenance.

back to newsletters
go back to top of page



What Will MetaLL* ifeÒ Do For My Tool Life and Die Performance?
R
educe Cavitation
E
liminate Lamination
Add Fatigue Strength for Longer Tool Life


Figure 4

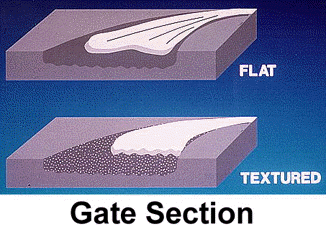

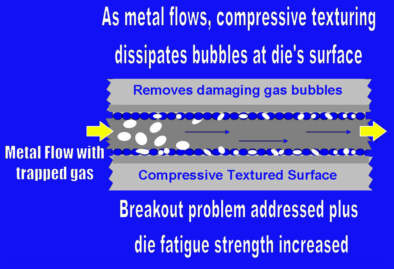

Simple explanation:  In addition to creating an encapsulating protective layer of compression, the MetaLL ifeÒ process takes the smooth surface finish at critical locations of a die's surface and adds micro uniform topography with alternating  high and low wave shapes.   As the molten metal liquid passes over the gate and runner surfaces, these summits and valleys quickly disrupt cavitation bubbles, thereby eliminating or drastically reducing the destructive eroding and pitting  from vortex or sheet cavitation on the die's surface (Figure 4).

How we stop the bubbles: The MetaLL ifeÒ compressive surface is effective to intentionally create a very thin stagnant layer of liquid metal adherent to the outer die surfaces. Typically, this layer of stagnant cooling liquid measures anywhere from 2 to 20 μm thick, depending upon the composition and viscosity of the cooling medium. At this order of magnitude, adhesive forces strongly bind the molten substance to a surface, especially if the fluidized metal is polar in nature (sharing electrons) like water (H2O).  Also at this magnitude, surface tension effects become very pronounced.  Adhesion and surface tension effects are thus leveraged by the surface texture.  Thus, the cavitation bubbles are held, by this stagnant layer, away from the outer surface of the die.  Moreover, the impinging jets from imploding bubbles will have a longer path to travel and have to overcome the uniform film formed by the stagnant fluid layer.  This shielding action rapidly dissipates the incoming high kinetic energy from the imploding bubbles on the die's surface.  In addition the metal cools more uniformily thus eliminating laminar fill problems.

If an imploding bubble does breach the stagnant layer, two things happen. 1. The bubble is quickly healed and reconstituted within the cycle time needed to create a new cavitation bubble.  2. The
MetaLL ifeÒ compressive stressed below the surface tension layer (mentioned earlier) stops the damage from occurring as rapidly from the imploding bubbles as rapidly,

The topography range (breadth and height), coupled with the tight uniform compressive spacing, enables the adhesion and surface tension effects within the liquid cooling medium to couple and act as capillary action to constitute the stagnant fluid layer on the surface.

back to Sep 07 newsletter
back to top of page


Lamination - What Causes It?

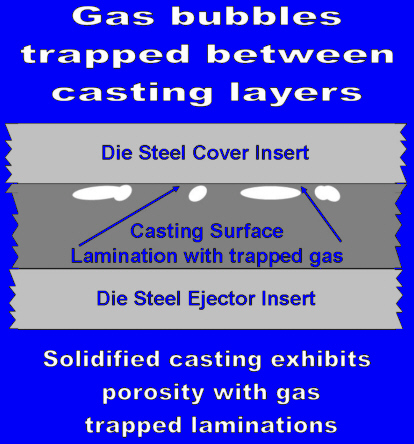

When flow is inefficient and gases are trapped between two layers of molten metal, laminations or laminar fill can occur.  This also is referred to as blistering.  Metal rushes over a flat surface of the die, and as heat is transferred, the metal closest to the die surface cools first.  The gas bubbles trying to escape, however, are trapped by a thin layer of already solidified metal.  As the rest of the metal further solidifies, this may create a thin layer with trapped gas between them (Figure 5).  This lamination can cause rejected castings because of appearance or internal porosity damage as in the case of a transmission or other fluid sealed dependent parts.  Eliminate or reduce the gas bubbles (see cavitation effect) and eliminate the laminations/porosity (Figure 6).   MetaLL ifeÒ accomplishes this by its topography change that functions to:

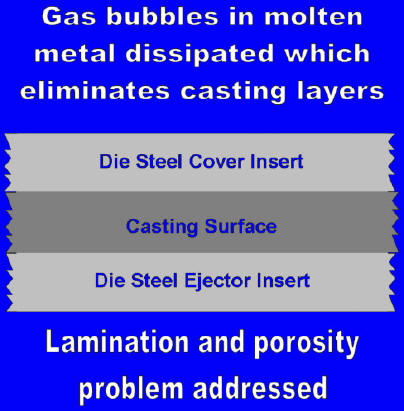

1. Create turbulent flow which allows more uniform solidification since the metal does not cool in layers.
